ALL AIRCRAFT Boeing 737-300F

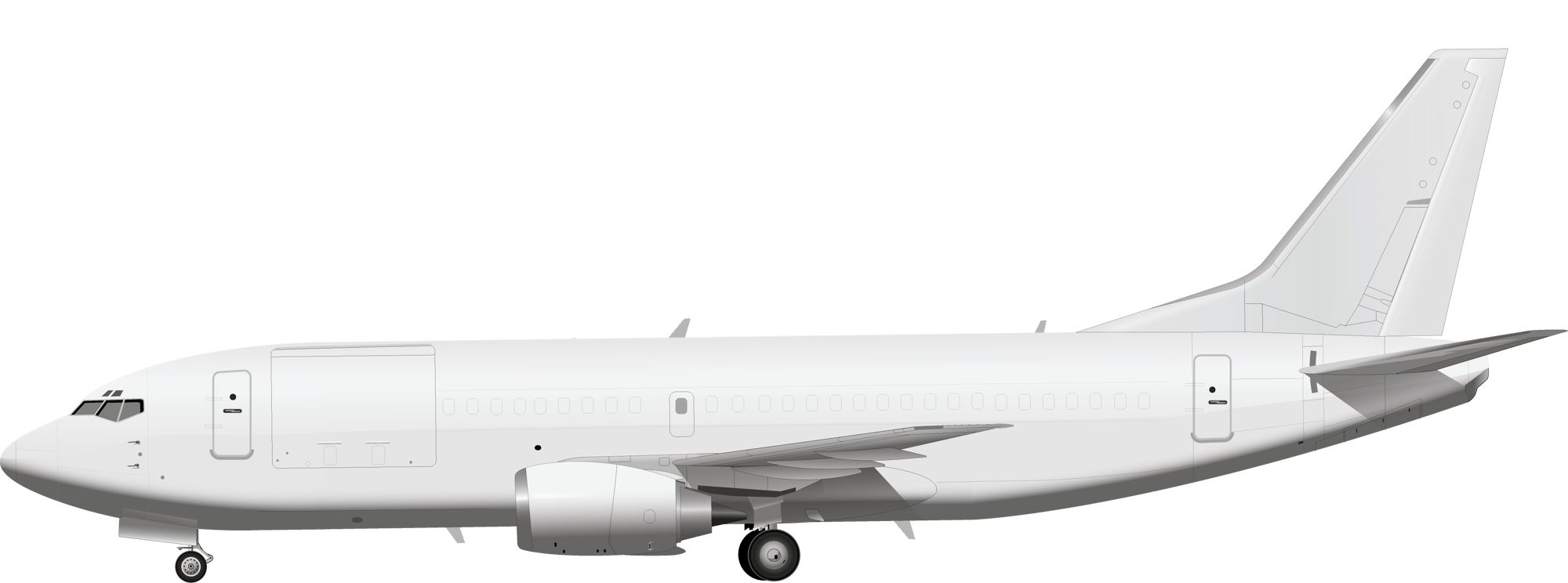

Boeing 737-300F

One of the most widely used twin-engined, medium-range aircraft, the 737 is known for efficiency, reliability, and low operating costs. Large cargo doors allow loading oversized and bulky freight.

CHARTER TODAY

BUILT FOR VERSATILE CARGO

Cost-Effective Freight for Medium-Haul

The Boeing 737-300 is a narrow-body jet powered by two wing-mounted turbofan engines. It was used by both commercial and military operators for a variety of purposes because of its versatility and sound design. In its role as a commercial airliner, the aircraft seated up to 180 passengers. Now popular with air freight companies, the dedicated freighter version, known as the 737-300F, was upgraded by removing the passenger seats and installing large cargo doors and structurally reinforced floor panels to support the loading and transportation of heavy cargo.

The advantages of the medium-haul freighter are its payload capacity, fuel efficient engines, and low maintenance costs due to its reliability and availability of spare parts. It can operate from smaller airports with shorter runways than wide-body jets, which increases the number of available destinations for shipping cargo.

The aircraft was designed to take off and land from relatively short paved and concrete runways typically found at small and large commercial airports. When properly modified, the aircraft can service undeveloped areas where only gravel or unpaved runways are available.

Choose AirFreight.com and get the right aircraft for your shipment. Let our concierge-level customer service and complete shipment flexibility get your delivery where it needs to be when you need it there.

Exclusive use of aircraft, ensuring no conflicting priorities

24/7/365 service availability for whenever you need transport

Platinum-level service and timing to reduce stress

In-flight tracking for accurate delivery status information

Cargo Capacity & Access

The main deck occupies the space just behind the forward passenger door and ends near the back of the fuselage. The lower deck is separated into two smaller sections located fore and aft of the wing. With the main deck and lower decks combined, the aircraft can hold 4,600 cubic feet of cargo weighing up to 42,300 pounds.

Cargo Doors: The cargo door for the main deck is 139 inches wide and 81 inches in height and located on the left side of the aircraft directly behind the first passenger door and forward of the engine. There is enough space around the door to easily maneuver service equipment. The door swings upward and clear of the doorway and cargo can be loaded using a scissor lift or cargo loader.

The lower deck is accessed through two doors approximately 44 inches wide by 33 inches in height on the right side of the aircraft, fore and aft of the wing. Belt ramps are typically used to service the lower deck.

Moderate-sized industrial equipment and assemblies.

Oil and gas assemblies and components.

Replacement parts for critical machinery or vehicles.

Specialized tools for repair or maintenance.

Time-sensitive goods.

Emergency equipment for disaster-affected areas.

Top Down Cutaway

Main Deck (Top)
Lower Deck (Bottom)

Max Payload

Cubic ft: 4,600
Weight: 42,300

Side Cargo Doors

Main Deck
Width: 139 in
Height: 81 in

Lower Deck Fore
Width: 44 in
Height: 33 in

Range & Routes

The Boeing 737-300F has a non-stop range of approximately 1,820 miles at maximum payload, making it ideal for domestic routes and remote locations throughout the US, Canada, and Mexico.

Airport Requirements

The 737-300F is a narrow-body jet designed to takeoff and land from relatively short paved and concrete runways typically found at small and large commercial airports. If properly modified, the aircraft can service undeveloped areas where only gravel or unpaved runways are available.

Taxiway Width: The aircraft’s length of 110 feet and wingspan of 95 feet allows it to operate on standard commercial size taxiways with a minimum width of 75 feet.

Parking Apron Space: At the minimum, the 737-300F requires a parking apron of 120 feet x 120 feet to accommodate the external dimensions of the aircraft with additional room for ground and service equipment.

Ground Handling: The aircraft requires a scissor lift or cargo loader to lift cargo to the main deck. Belt or cargo loaders may be used to transfer cargo on the lower deck.

Fueling: Fueling may be carried using large capacity fuel trucks or fueling systems capable of transferring large quantities of fuel. Fuel capacity is dependent on the weight of the payload carried by the aircraft and the range of travel required but can be up to 5,400 gallons.

Power and Air Support: The aircraft is equipped with an internal auxiliary power unit to provide electrical and pneumatic power when the engines are not running. The aircraft may also be connected to a ground power unit to power electrical and pneumatic systems.

Runway Requirements

Takeoff Runway Length: The minimum runway length for a 737-300F at maximum payload is approximately 6,500 feet. This requirement will vary based on altitude, temperature, wind conditions and runway conditions. High-altitude airports with elevations over 8,000 feet may require longer runways due to lower air density.

Landing Runway Length: The 737-300F at maximum payload requires a minimum runway length of 6,100 feet. Wet, icy, unpaved, gravel, or grass runways may increase the minimum landing distance required for safe operation.

Crew

The Boeing 737-300F is operated by two pilots. Additional cargo support personnel may be assigned to the flight by the carrier to monitor the cargo and coordinate seamless end-to-end delivery.

KEY AIRCRAFT SPECIFICATIONS

Length

110 feet

Wingspan

95 feet

Maximum Takeoff Weight

138,500 pounds

Maximum Payload

Approximately 42,300 pounds

Range

Approximately 1,820 miles with a full payload including crew, fuel, and cargo

Cargo Volume

Approximately 4,600 cubic feet

Cruise Speed

495 miles per hour

Engines

Typically equipped with two CFM International CFM56 turbofan engines
