ALL AIRCRAFT Airbus A300-600F

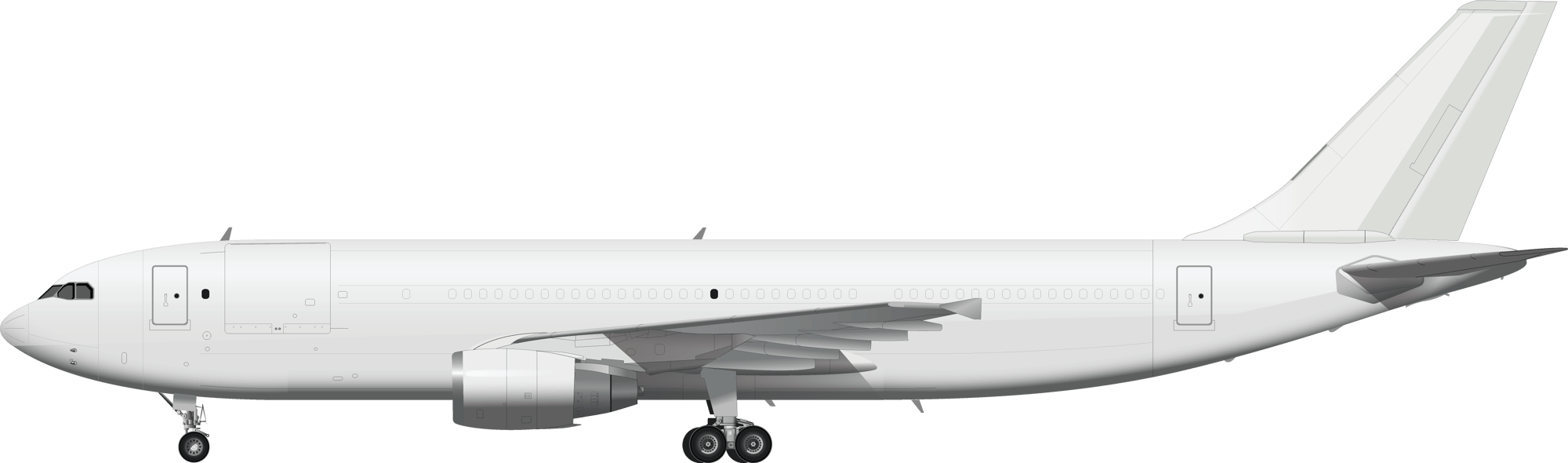

Airbus A300-600F

A large, wide-bodied aircraft designed to accommodate up to 28 pallets over two decks. Large primary and lower deck doors facilitate easy loading and unloading. Intended for medium-range flights.

CHARTER TODAY

EFFICIENT TURNAROUND

Versatile Freight for Medium- to Long-Range Needs

The Airbus A300-600 was the first twin-engine wide-body aircraft in the world and designed to operate in the medium- to long-range market. It is powered by two wing-mounted engines. In its role as a commercial airliner, the aircraft can seat up to 250 passengers. The dedicated freighter variant, dubbed the A300-600F, is used to transport medium to large cargo.

The advantages of the A300-600F are its high payload capacity and flexibility in transporting oversized and irregularly shaped cargo. The large cargo door accessing the main desk enables easy loading and unloading of cargo, and built-in automated handling systems minimize turnaround times.

The aircraft was designed to take off and land at well-equipped regional and major international airports that meet the requirements for handling large, wide-body aircraft.

Choose AirFreight.com and get the right aircraft for your shipment. Let our concierge-level customer service and complete shipment flexibility get your delivery where it needs to be when you need it there.

Exclusive use of aircraft, ensuring no conflicting priorities

24/7/365 service availability for whenever you need transport

Platinum-level service and timing to reduce stress

In-flight tracking for accurate delivery status information

Cargo Capacity & Access

The expansive main deck occupies the area behind the forward passenger door to the back of the fuselage, and the lower deck is separated into two sections, with one section forward of the wing and one section aft of the wing. All holds combined, the aircraft can accommodate 13,800 cubic feet of cargo weighing up to 103,600 pounds.

Cargo Doors: The primary cargo door for the main deck is 141 inches wide and 101 inches in height and located on the left side of the aircraft. Placement of the door provides a large area between the nose and the engine for service equipment and vehicles to comfortably maneuver. The cargo door swings upward and clear of the doorway.

The lower deck is accessed by way of two doors located on the right side of the aircraft and approximately 106 inches wide and 66 inches in height. Belt ramps are typically used to service the lower deck.

Moderate-sized industrial equipment and assemblies.

Oil and gas assemblies and components.

Replacement parts for critical machinery or vehicles.

Specialized tools for repair or maintenance.

Time-sensitive goods.

Emergency equipment and supplies for disaster-affected areas.

Top Down Cutaway

Main Deck (Top)
Lower Deck (Bottom)

Max Payload

Cubic ft: 13,800
Weight: 103,600

Side Cargo Doors

Main Deck
Width: 141 in
Height: 101 in

Lower Deck Fore
Width: 106 in
Height: 66 in

Range & Routes

The A300-600F has a non-stop range of approximately 4,700 miles at maximum payload, making it ideal for domestic routes throughout the US, Canada, and Mexico.

Airport Requirements

The A300-600F is a wide-body jet designed to takeoff and land at well-equipped regional and major international airports that meet the requirements for handling wide-body aircraft.

Taxiway Width: The aircraft’s length of 177 feet and wingspan of 147 feet requires a taxiway designed for wide-body jets.

Parking Apron Space: A large parking apron is required to accommodate its length and wingspan while allowing enough room for service vehicles and equipment to maneuver.

Ground Handling: The aircraft requires a cargo loader to lift cargo to the main deck. Belt or cargo loaders may be used to transfer cargo on the lower deck.

Fueling: Fueling may be carried using large capacity fuel trucks or fueling systems capable of transferring large quantities of fuel. Fuel capacity is dependent on the weight of the payload carried by the aircraft and the range of travel required, but can be up to 25,500 gallons.

Power and Air Support: The aircraft is equipped with an internal auxiliary power unit to provide electrical and pneumatic power when the engines are not running. The aircraft may also be connected to a ground power unit to power electrical and pneumatic systems.

Runway Requirements

Takeoff Runway Length: The minimum runway length for an A300-600F at maximum payload is approximately 7,500 feet. This requirement will vary based on altitude, temperature, wind conditions and runway conditions. High-altitude airports with elevations over 8,000 feet may require longer runways due to lower air density.

Landing Runway Length: At maximum payload, the A300-600F requires a minimum runway length of 5,100 feet. Wet, icy, unpaved, gravel, or grass runways may increase the minimum landing distance required for safe operation.

Crew

The A300-600F is operated by two pilots. Additional cargo support personnel may be assigned to the flight by the carrier to monitor the cargo and coordinate seamless end-to-end delivery.

KEY AIRCRAFT SPECIFICATIONS

Length

177 feet

Wingspan

147 feet

Maximum Takeoff Weight

375,900 pounds

Maximum Payload

Approximately 103,600 pounds

Range

Approximately 4,700 miles with a full payload including crew, fuel, and cargo

Cargo Volume

Approximately 13,800 cubic feet

Cruise Speed

520 miles per hour

Engines

Typically equipped with two General Electric CF6-80C2 or Pratt & Whitney PW4000 turbofan engines
